Vacuum levels

The previous topic was hard on the in-material ϕ\phi, so let me start this one with good news: there is a place where the electrostatic potential is beyond reproach, and it is the vacuum. With no particles around there is nothing to smooth over; the microscopic potential is already smooth, and a real charged particle launched into it has electrostatic energy exactly ziFϕvacz_i F \phi_{\mathrm{vac}}, no test-charge fiction required. The test charge and the real charge finally agree. To be precise about names:

  • Vacuum potential ϕvac\phi_{\mathrm{vac}}: the value of the electrostatic potential anywhere in the vacuum.
  • Outer potential ψ\psi: the value of the electrostatic potential just outside a particular material surface (there, ψ=ϕvac\psi = \phi_{\mathrm{vac}}). Between it and the material's inner ϕ\phi sits that surface's own charge double layer, giving a step ψ−ϕ=−χ\psi - \phi = -\chi, where χ\chi is the surface potential (usually positive).

This honesty is why ϕvac\phi_{\mathrm{vac}} has already earned a line on our band diagrams. In the capacitance topic we drew it in the gap between metal plates, stepping down from each electrode's Ve−V_{\mathrm{e}^-} by the work function. The right mental picture is that the vacuum is one more material: an insulator with no mobile charges, whose interior potential obeys the Laplace equation ∇2ϕvac=0\nabla^2 \phi_{\mathrm{vac}} = 0, and whose boundary values are dictated by whatever surfaces face it. Drawn that way, it earns its line like any other level.

The trouble begins when the vacuum is promoted from a material to a reference frame: a universal zero hovering above the physics, from which all the in-material energies can be hung. This topic is about why that promotion fails. The vacuum level is real, but its writ ends at the surface.

The vacuum is not flat

Frequently we see energy level charts with 'vacuum level' drawn flat across the top as a zero line, a common reference for different materials. But the vacuum is naturally an electrically inhomogeneous "material": containing no mobile charges, it cannot screen, so it has no mechanism to flatten its own ϕvac\phi_{\mathrm{vac}}. Every conductor sets its surface ψ\psi differently (every metal surface has its own work function), and in between the surfaces, the vacuum level interpolates according to the Laplace equation.

GoldVacuumAluminum↕↕Ve−V_{\mathrm{e}^{-}}ϕvac\phi_{\mathrm{vac}}−5.5−5.0−4.5−4.0−3.5−3.0−2.5−2.0−1.5−1.0−0.50.00.5Species Voltage (V)

Gold and aluminum wired together at equilibrium: one flat Ve−V_{\mathrm{e}^-}, two different work functions, so each surface sets its own outer potential and ϕvac\phi_{\mathrm{vac}} slopes across the gap between them. There is a real electric field in the vacuum between two connected metals at equilibrium, and no current flows anywhere.

Achieving a flat ϕvac\phi_{\mathrm{vac}} would require every surface of every body to present the same outer potential: uniform work functions everywhere, and every body carefully charge-neutralized. Aside from that artificially engineered special case, "the vacuum" is many vacuums, with a different ψ\psi at every point of every surface. Retreating to a far-away reference like ϕvac(∞)\phi_{\mathrm{vac}}(\infty) escapes the local mess only by becoming irrelevant, and it can be ill-defined or undefined for an electrochemical device wired to electrodes.

Nor is ψ\psi a bulk property

Even for a single, perfectly homogeneous bulk material, ψ\psi varies over its surface with contamination, oxidation, crystal facet, roughness, termination, and spontaneous surface reconstruction. We can nail ψ\psi down with heroic surface preparation, but what we have then defined is "what ψ\psi would be for such-and-such surface condition", which is a property of the preparation, no longer of the bulk. A particle deep inside the material does not know or care how well we prepared some distant surface, or whether its host has any exposed surface at all.

VacuumGoldVacuum↕Ve−V_{\mathrm{e}^{-}}ψ(111)\psi_{(111)}ψ(110)\psi_{(110)}−5.5−5.0−4.5−4.0−3.5−3.0−2.5−2.0−1.5−1.0−0.50.00.5Species Voltage (V)

A single homogeneous gold block at equilibrium, with two different exposed faces (say, two crystal facets). Ve−V_{\mathrm{e}^-} is one flat level through the bulk, yet each face sets its own outer potential ψ\psi. "The vacuum level of gold" is not one number; it is a property of each surface.

Electrochemistry has its own version of this trap. The "solvation energy of an ion" sounds like a bulk handshake between ion and solvent, and one can indeed measure a reproducible energy by dropping an ion from just above a scrupulously clean solvent surface. But the number so obtained is a property of that surface, and it offers no route to a universal absolute solvation scale, for the same reason that a work function does not measure a bulk binding energy.

One vacuum level per species

There is one more distinction to draw, and the diagrams have been quietly begging for it: why do we draw "the" vacuum level as a single line at all? For electrons there is a genuine tie. The convention that an electron at rest in vacuum has energy Ee−=−e ϕvacE_{\mathrm{e}^-} = -e\,\phi_{\mathrm{vac}}, its electrostatic energy and nothing more, is so universal that it feels like physics rather than convention (offsets galore tours this bolted-down knob), and thermionic emission and photoemission then genuinely do connect a metal's Ve−V_{\mathrm{e}^-} to the vacuum outside across the work function Φ\Phi, so that ϕvac=Ve−−Φ/e\phi_{\mathrm{vac}} = V_{\mathrm{e}^-} - \Phi/e on the voltage axis.

For ions there is no such collapse. Each ionic species parks at its own level in vacuum, offset from ϕvac\phi_{\mathrm{vac}} by a gas-phase formation energy that our chemical-potential conventions have already fixed: on the voltage axis, a gaseous Na+\mathrm{Na}^+ sits near ϕvac+6 V\phi_{\mathrm{vac}} + 6\ \mathrm{V}.[1] So "the vacuum level" is really a family, one rung per species, and it collapses onto a single line only for electrons, and only by convention. The idea of work function generalizes accordingly: each species has a well-defined WiW_i, the gap from its in-material ViV_i up to its own vacuum rung.[2] That gap is the physically meaningful piece; the placement of the rungs is bookkeeping.

MetalSolutionVacuum ↕↕↕Ve−V_{\mathrm{e}^{-}}VNa+V_{\mathrm{Na}^{+}}VNa+∘V_{\mathrm{Na}^{+}}^\circVCl−V_{\mathrm{Cl}^{-}}VCl−∘V_{\mathrm{Cl}^{-}}^\circϕvac\phi_{\mathrm{vac}}VNa+∘(g)V^\circ_{\mathrm{Na}^+}(\mathrm{g})VCl−∘(g)V^\circ_{\mathrm{Cl}^-}(\mathrm{g})−4.5−4.0−3.5−3.0−2.5−2.0−1.5−1.0−0.50.00.51.01.52.0Species Voltage (V)

A metal, an aqueous solution, and the vacuum above them, on one voltage axis. ϕvac\phi_{\mathrm{vac}} is drawn only in the vacuum region. Each species keeps its own vacuum rung at its gas-phase formation offset (gaseous Na+\mathrm{Na}^+ sits about +6+6 V above ϕvac\phi_{\mathrm{vac}}), and each species' work function is the gap from its in-material ViV_i to its own rung, never to a shared line.

Even these honest WiW_i have to be read carefully: a work function is a surface barrier height, the cost of stepping just outside one particular surface, and it is easy to mistake for a bulk binding energy. Consider a "Janus particle" faced with two different metals: its true electron binding energy (ionization energy) is a single number, defined by carrying the electron far away, and it matches neither face's WW. Likewise, the energy to remove a particle depends on the parent body's total charge, however uniform ψ\psi may be. (The "electron affinity" and "ionization energy" quoted for semiconductor surfaces share this character: they are barrier heights, not binding energies.) Barrier heights describe surfaces; binding energies require the full journey.

Vacuum contact: a thought experiment that fails

It is very common to try to predict material interfaces from a thought experiment of two surfaces approaching each other through vacuum. The story goes:

Suppose we have two uncharged materials floating in vacuum some distance apart. Since they are uncharged, ϕvac\phi_\mathrm{vac} is flat inbetween them and equal to ψ\psi of both bodies. We then bring the materials closer and closer together until their ψ\psi levels fuse together. From the contact assumption, we then derive the charge transfer, the degree of semiconductor band bending, or a solution's diffuse layer.

As argued by R. Tung,[3] the vacuum contact thought experiment basically supposes that the two materials come together without any interaction, in a weird unphysical sort of superposition. What actually happens when materials meet is a detailed chemical bonding process that depends quite sensitively on microscopic details and the specific identities of all atoms involved. In all cases there is some kind of atomic-scale rearrangement of atoms, bonds, and charges right at the interface, creating an interface-specific double layer that cannot be predicted from macroscopic observables (ψ\psi included).

(Often the assumption is stated as "the vacuum level is continuous", and drawn as such on band diagrams:

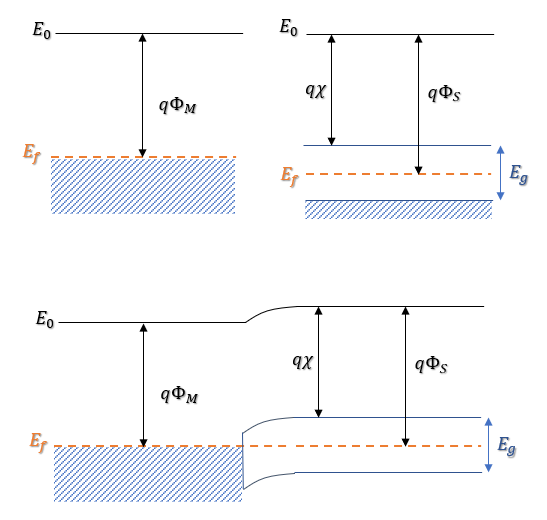

Common naive view of metal-to-semiconductor junction, where electron vacuum energy E0=−eψE_0 = -e \psi is drawn as continuous. from wikimedia commons user Giulio.galderisi, CC-BY-SA-4.0 license

This is doubly wrong: the outer potential should not be depicted as a bulk level threading through materials, and where it does exist, it is allowed to be discontinuous, because the interface dipole is a new object that neither surface contained.)

The predictions that follow from vacuum contact, the Schottky–Mott rule and Anderson's rule, are eminently testable. In fairness, they often work tolerably in the more ionic materials, many oxides among them.[4] But a rule derived from first principles does not get to choose its materials: measured Schottky barriers on the common covalent semiconductors (silicon, GaAs) are almost completely decorrelated from the Schottky–Mott prediction, and semiconductor heterojunction alignment disagrees with Anderson's rule likewise. An exception on that scale disproves the rule: whatever aligns those interfaces, it is not the vacuum levels,[5] and a new interface does not announce in advance which regime it belongs to. The thought experiment retains some pedagogical value for introducing band bending, which truly does occur, but its quantitative alignment claims cannot be trusted in advance, and they regularly appear in the literature as unstated assumptions. Materials are not legos: a vacuum surface is one kind of interface with its own special considerations, and a material-material junction is another.

What vacuum reasoning is for

Vacuum levels are excellent at their actual job, which is the physics of surfaces facing vacuum: thermionic emission, photoemission and work-function spectroscopy, Kelvin probe measurements, charged-particle optics in the space between surfaces. In all of these, ψ\psi and ϕvac\phi_{\mathrm{vac}} are exactly the right variables.

The famous "absolute" electrode potential belongs on this list. The widely-quoted 4.44 V4.44\ \mathrm{V} for the standard hydrogen electrode[6] is best read as an electrode's work function: a legitimate, useful surface property, drifting with surface preparation and contamination like any other work function, and no more a universal zero than any other rung. The reference-electrodes topic shows where it sits on a cell diagram.

SHE solutionVacuum↕Ve−∘(SHE)V^\circ_{\mathrm{e}^-}(\mathrm{SHE})ϕvac\phi_{\mathrm{vac}}−4.5−4.0−3.5−3.0−2.5−2.0−1.5−1.0−0.50.00.5Species Voltage (V)

The "absolute" electrode potential, drawn: the outer potential just above the solution's surface sits 4.44 V4.44\ \mathrm{V} below the SHE rung Ve−∘(SHE)V^\circ_{\mathrm{e}^-}(\mathrm{SHE}) on the voltage axis. It is a work function of an electrode, one more gap on the diagram, not a universal zero.

If simulation is your business, the same rule applies: a computed ψ\psi is only as meaningful as the modelled surface, so state the surface. (The vacuum contact story, at least, is something molecular simulation refutes all by itself.)

In the end, the textbook hierarchy is upside down. Through our wires, power supplies, and voltmeters, it is the Fermi level Ve−V_{\mathrm{e}^-} that is directly accessed and controlled; the vacuum levels draped over every surface are a secondary, dependent field, following from the materials and their surface conditions. If you need a reference, anchor to the wire, not to the sky.

Takeaways

The vacuum potential is the one honest electrostatic potential: unsmoothed, measurable, and felt identically by test charges and real charges. It is also honest about what it is, namely a property of particular surfaces and of the space between them. It is not flat, it is not a bulk property, every charged species carries its own vacuum rest level, and interfaces formed by contact owe it nothing (as the failures of the Schottky–Mott and Anderson rules attest). Use ψ\psi for vacuum-facing physics; for everything in-material, anchor to the ViV_i of a wire you can actually touch.
